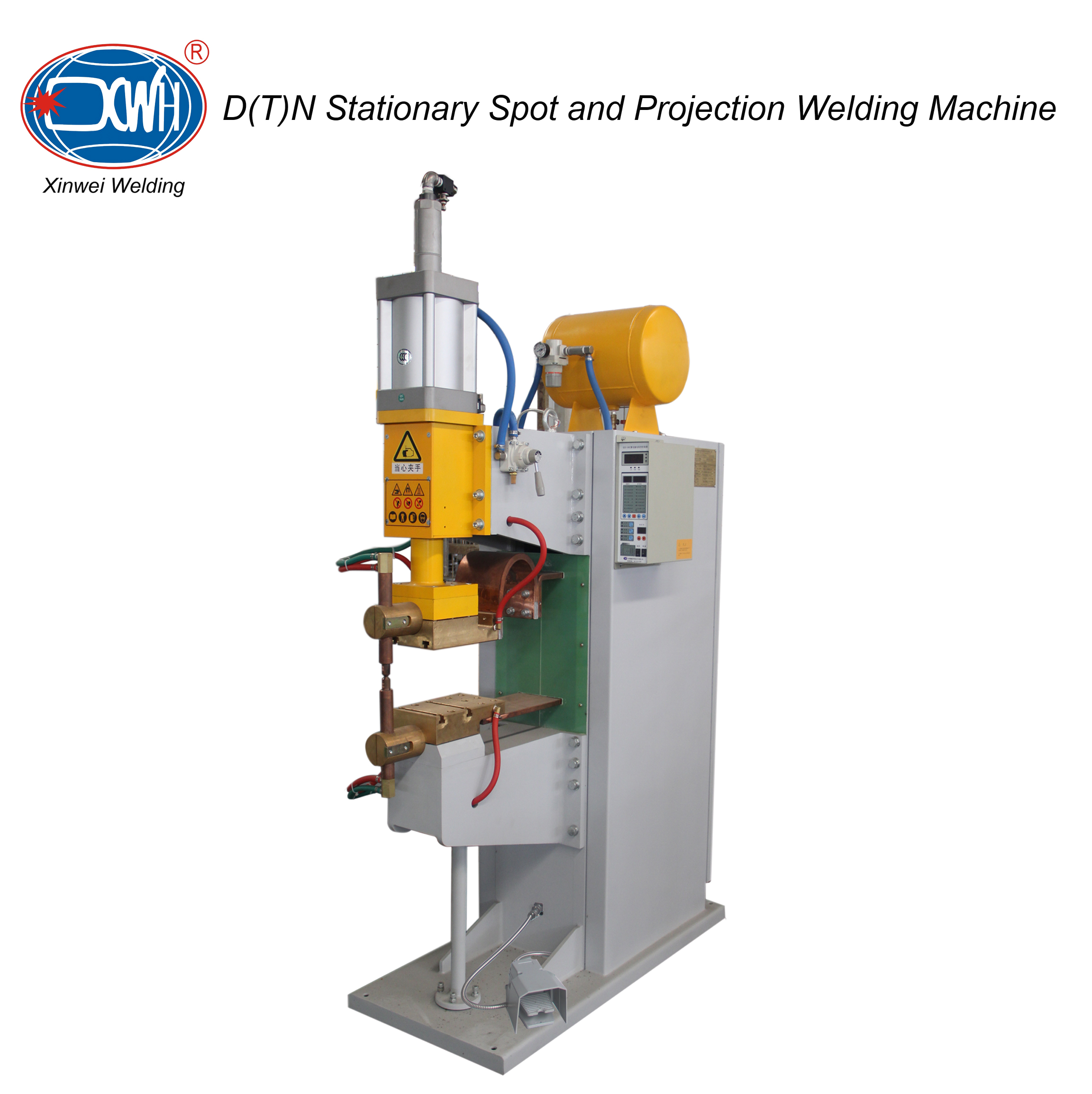

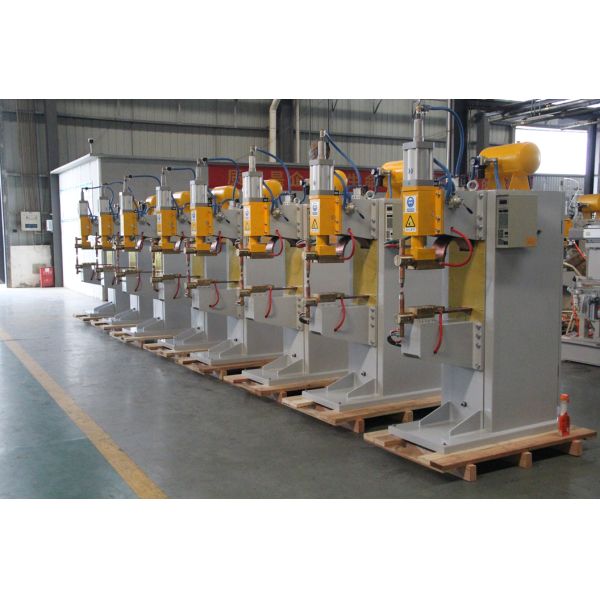

Power Medium Frequency Automatic Induction Stationary Spot Welding Machine for Household Appliance

Product Categories

Chengdu Xinwei Welding Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Certification : ccc

MOQ : 1 set

Price : $5,000-5,500 / set

Payment Terms : L/C,D/A,D/P,Western Union,T/T

Supply Ability : 100 sets per month

Delivery Time : 25-45 working days

Product Name : Induction Stationary Spot Welding Machine For Household Appliance

rated input voltage : 380 V

material / metal processed : Aluminium Alloy

warranty : 1 Year

weight (kg) : 200 KG

Welding current : 200-13000A

Feature : Operate

MOQ : 1 Set

Key Selling Points : High Productivity

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

Contact Now

Product Description

MODEL		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6
Cooling water flow L/min	8	8	8	8	8	8

main feature

Precise & Stable MFDC Welding: Employs advanced Medium Frequency Direct Current (MFDC) inverter technology, delivering a stable and concentrated welding current for exceptional weld quality, deeper penetration, and minimal spatter. This ensures consistent and reliable results across a wide range of materials.
High Efficiency & Energy Saving: Features a high-performance digital inverter power source that significantly reduces energy consumption compared to traditional AC welders. It enables faster weld times, boosting productivity while lowering operating costs.
Servo-Controlled Precision Force: Equipped with a servo-driven electrode pressure system, providing highly accurate and repeatable force application. This is critical for achieving consistent quality in delicate or demanding projection welding applications.
Robust & Durable Construction: Built with a heavy-duty, rigid frame and high-quality components to ensure operational stability. It is designed to withstand rigorous industrial cycles, guaranteeing long-term reliability and service life in demanding environments.
Intelligent Adaptive Control: Integrated with a user-friendly microcomputer-based controller. It allows for programmable welding schedules, offers real-time process monitoring, and features adaptive feedback control, ensuring optimal weld quality with simplified operation.

Product Tags:

aluminium nut spot welding machine
