Automatic Feeding Double-Sided Spot Welding Machine

Brand Name : Xingweihan

Place of Origin : Sichuan, China

Certification : CE, RoHS, ISO

MOQ : 1 set

Price : $20,000 / set

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10 sets per month

Delivery Time : 25-45 working days

Packaging Details : wooden box

Product Name : Automatic Feeding Double-Sided Spot Welding Machine

max. welding thickness : 6+6mm

power (kw) : 1000W

rated capacity : 100-250KVA

voltage : 380 V, 220 V, 440V

dimensions : 1300*1500*2200mm

rated duty cycle : 50%

warranty : 1 Year

weight (kg) : 900

Welding material : Metal Aluminum Stainless Steel

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

Contact Now

Product name:Automatic Feeding Double-Sided Spot Welding Machine
Product Description

This is a stationary, DC pneumatic spot welding machine designed for the automated assembly of shock absorber bottom covers. It features an integrated automatic feeding system with two high-precision vibrating bowls for the bottom cover and welding ring, respectively. The system utilizes a servo-driven positioning mechanism for accurate part alignment and an MFDC (Mid-Frequency Direct Current) inverter welding power supply combined with a constant pressure control system to perform welding. It is engineered to complete the welding and unloading process automatically, supporting a continuous production cycle.

Technical Parameters
Items ModelsDN(B)-100DN(B)-160DN(B)-200DN(B)-250
Rated power (KVA)100160200250
Power input(V)3φAC 380V3φAC 380V3φAC 380V3φAC 380V
Max. short circuit current (KA)30354045
Duty cycle(%)50505050
Max. force(N)600060001000015000
Electrode length( MM)450450450500
Working stroke( MM)80808080
Cooling consumption(L/min)20202020
Max. welding capacity(MM)3.0+3.04.0+4.05.0+5.06.0+6.0
Main Features

A. Complete Automated Workflow

  • Integrated Auto-Feeding:​ Two independent vibrating bowl feeders are designed for automated orienting and precise feeding of both the bottom cover and welding ring components, reducing manual handling.

  • Servo-Assisted Precision:​ A servo-driven positioning mechanism is employed to help ensure accurate assembly of workpieces prior to welding.

B. Stable & Efficient Welding Process

  • MFDC Inverter Power Supply:​ The use of a Mid-Frequency DC inverter welding power supply, combined with constant pressure control, aims to provide stable, controllable welding energy for consistent results.

  • Optimized Pressure Application:​ A pneumatic-hydraulic booster cylinder provides adjustable electrode pressure, while a dedicated air storage tank is included to help minimize fluctuations in welding force.

C. Robust and Durable Construction

  • High-Rigidity Machine Frame:​ The body is designed for impact resistance and high rigidity, with internal reinforcement ribs intended to minimize deformation during operation and support welding stability.

  • Responsive Drive System:​ The use of a combination cylinder with low-friction components and a pilot-operated high-flow valve is designed for smooth, fast electrode movement and responsive performance.

D. Operational Safety & Protection

  • Comprehensive System Monitoring:​ Equipped with air and water pressure switches and alarms, the system is designed to help prevent operation during pressure shortages, protecting the equipment.

  • Insulated Secondary Circuit:​ An insulated upper arm and pressurized cylinder seat design is intended to help prevent short circuits during direct installation on the lower base, promoting operational safety.

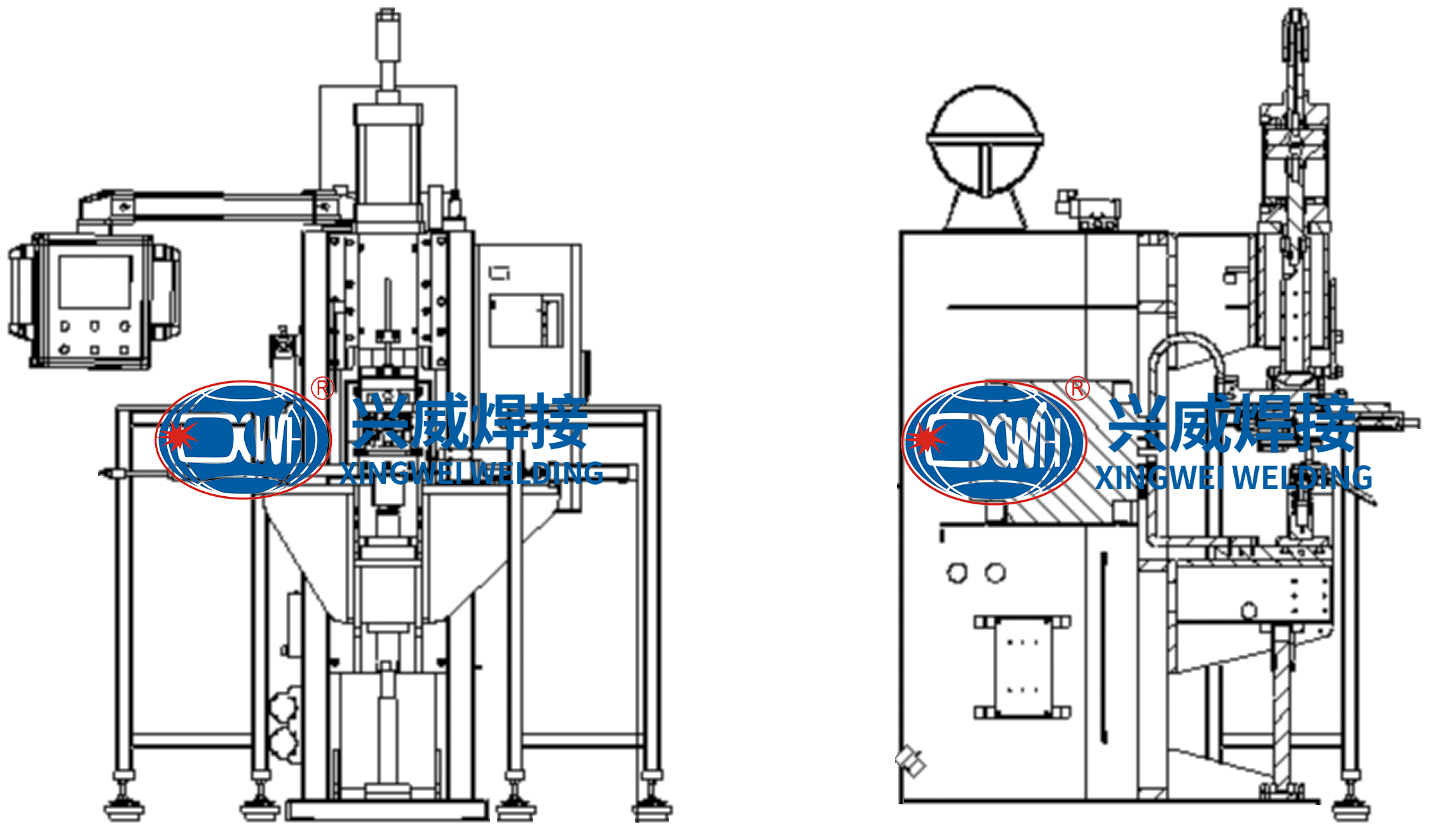

General Structures
Automatic Feeding Double-Sided Spot Welding Machine
Automatic Feeding Double-Sided Spot Welding Machine
Detail Images
Automatic Feeding Double-Sided Spot Welding Machine
Human-computer Interaction Interface
Automatic Feeding Double-Sided Spot Welding Machine
Double Vibration Disc Efficient Feeding System
Automatic Feeding Double-Sided Spot Welding Machine
Customized Fixtures and Moving Components
Automatic Feeding Double-Sided Spot Welding Machine
Waterway Components
Scene images
Automatic Feeding Double-Sided Spot Welding Machine
Automatic Feeding Double-Sided Spot Welding Machine

Our factory can customize according to your requirments. More details, please contact!
