Industrial Medium Frequency Pneumatic Projection Multi Point Resistance Welders

Product Description

Industrial Medium Frequency Pneumatic Projection Multi Point Resistance Welders Spot Welding Machine Welder for Galvanized Tube

This machine is a high-performance production solution engineered specifically to boost welding capacity for galvanized tubes. Its core advantage lies in its dual-gun synchronous welding technology. Utilizing two precisely engineered, custom welding guns, it can simultaneously complete high-quality spot welds at two key positions on a workpiece within a single operational cycle, nearly doubling efficiency compared to traditional single-head equipment. The robust gantry frame and custom electrode fixtures ensure extremely high repeatability and positional consistency of weld spots, even under prolonged, high-duty operation. Welding parameters are optimized for the characteristics of galvanized materials, effectively overcoming the challenges posed by the low resistivity of the zinc layer to produce strong, aesthetically pleasing weld nuggets. Operators simply handle loading and unloading, allowing this "iron workhorse" to deliver a continuous output of stable, reliable products with tireless precision—an essential capacity multiplier for high-volume production lines.

Technical Parameters

Main Features

1. The body is designed with high rigidity, impact, and vibration resistance. Precision machined to meet the installation and load requirements of all components, its internal frame is reinforced with multiple ribs. This minimizes deformation during welding, ensuring exceptional process stability and operational safety.

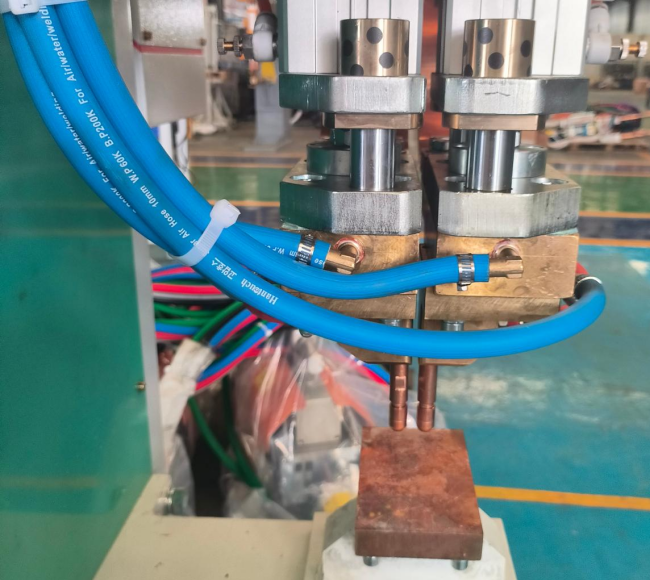

2. Features two independently controlled welding heads that operate simultaneously, completing two weld spots per cycle. This synchronized design dramatically increases throughput for multi-point welding applications on galvanized tubes.

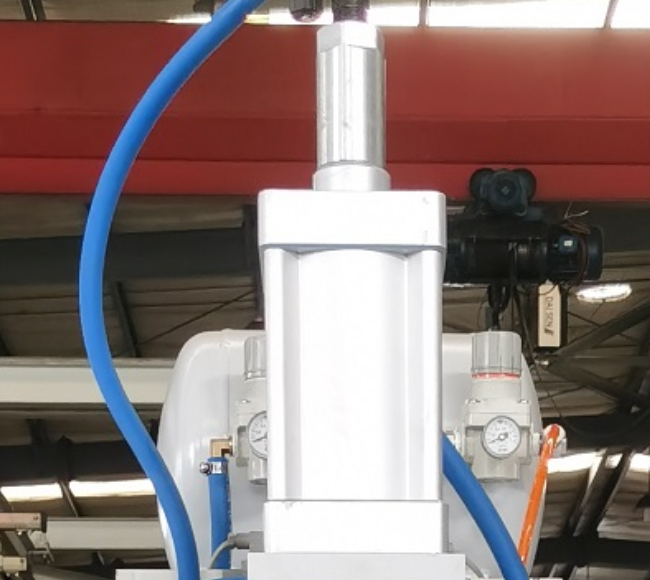

3. The upper electrode is powered by a pneumatic-hydraulic booster cylinder, allowing for convenient and precise pressure adjustment. This system provides high hydraulic output using standard plant air pressure, eliminating the need for a separate hydraulic power unit. A dedicated air reservoir further stabilizes welding force by reducing pressure fluctuations.

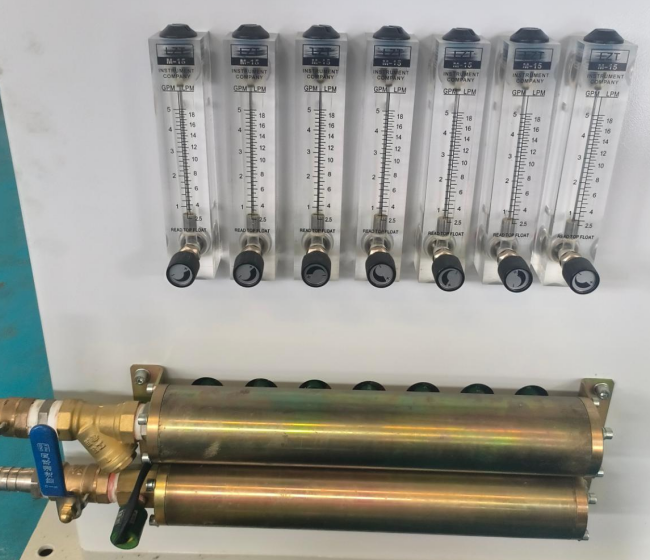

4. Equipped with digital welding control for precise management of current, time, and pressure. Features air and water pressure monitoring switches with alarms to effectively prevent welding under insufficient coolant or air supply conditions, protecting the equipment from damage.
5. The descent and ascent speeds of the pressure head are fully adjustable, cushioning impact on the workpiece and reducing noise. The combination cylinder, featuring an aluminum alloy barrel with low-friction seals and rings paired with a pilot-operated, high-flow valve, ensures smooth movement, fast response, and high cycling speeds.
6. The secondary circuit employs an insulated design for the pressure cylinder base and upper arm, allowing for safe installation and welding on conductive bases without short-circuit risk. The main power circuit uses a fully water-cooled resistance welding transformer and rectifier, known for robust power output, energy efficiency, and reliable performance.

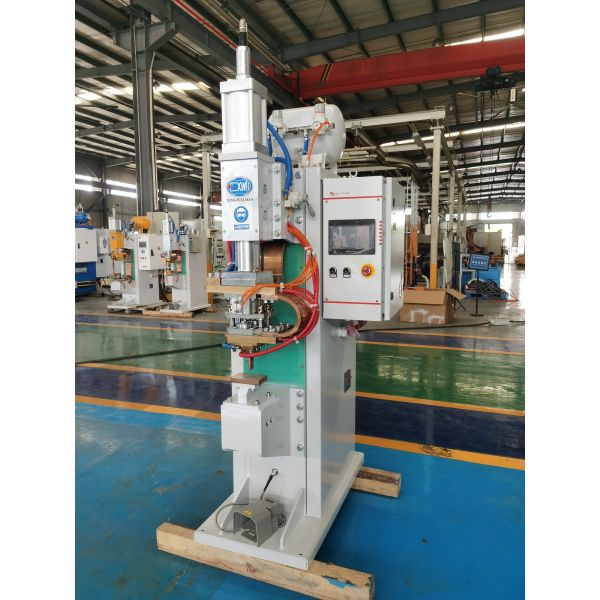

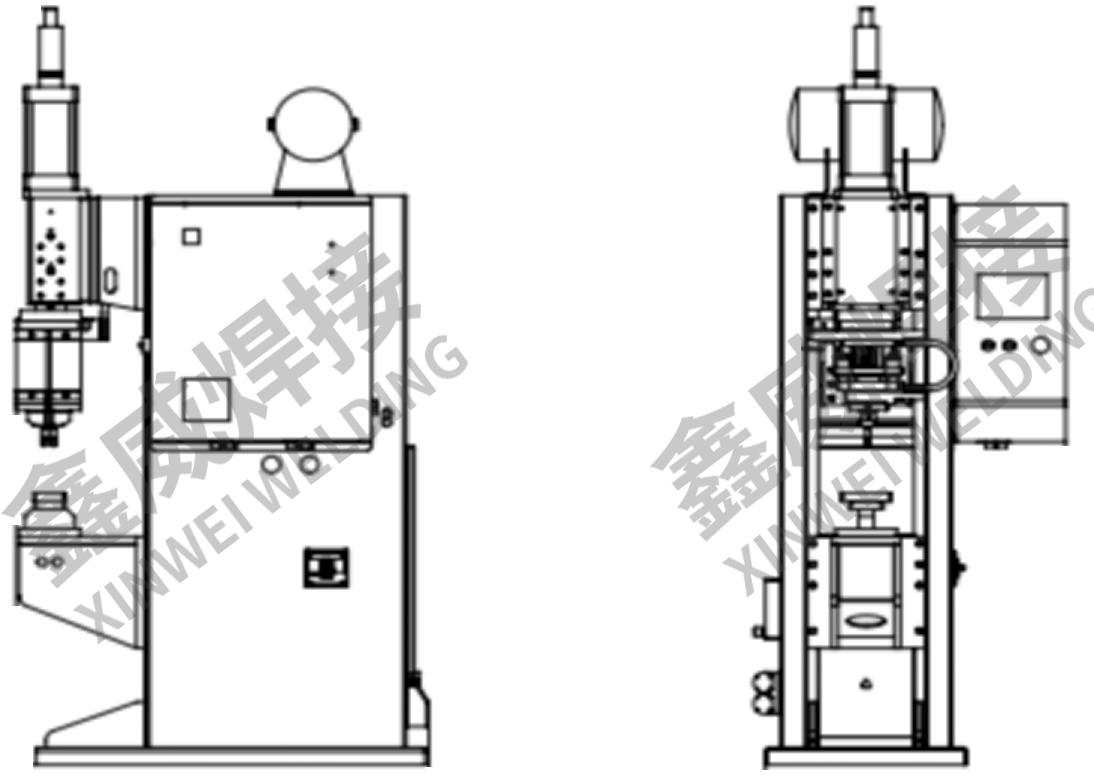

General Structures

Detail Images

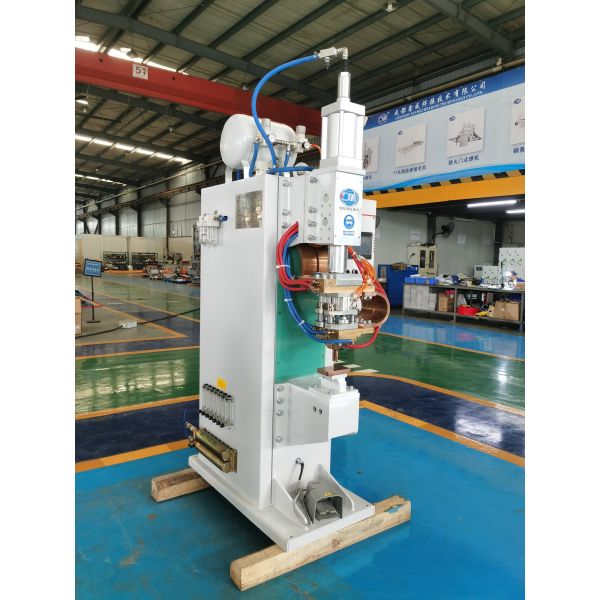

Scene images
