Horizontal Type 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders

Name: Horizontal Type 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders
Brand: Xingweihan
Price: 28 USD

Quality Horizontal Type 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders for sale

Brand Name : Xingweihan

Place of Origin : Sichuan, China

Certification : CE, RoHS, ISO

MOQ : 1 set

Price : $28,000-30,000 / set

power (kw) : 80-160

Thickness : 2+2MM

voltage : 220 V, 480 V, 380V/50Hz

welding diameter : Custonized

condition : New

dimensions : 2400*3000*2600mm(94.49*118.11*102.36in)

usage : Seam Welding Machine Cnc For Shock Absorber

warranty : 1 Year

weight (kg) : 2600

Welding Mode : High-Frequency Seam Welding

Product name : Automatic Piston Bore Shock Absorber Seam Welders For Steel

Application : Seam Resistance Welder

Function : Machine Weld Seam

Welding Material : Carbon Steel Stainless Steel Aluminum

Machine type : Machine Seam Welding

Type : Horizontal Seam Welding Machine

Keyword : Side Seam Welding Machine

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

Contact Now

Horizontal Type 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders

ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions. A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)

Product Description

Horizontal Type Hot Selling Product 160Kva Mfdc Automatic Welding Machine Piston Bore Shock Absorber Seam Welders for Steel

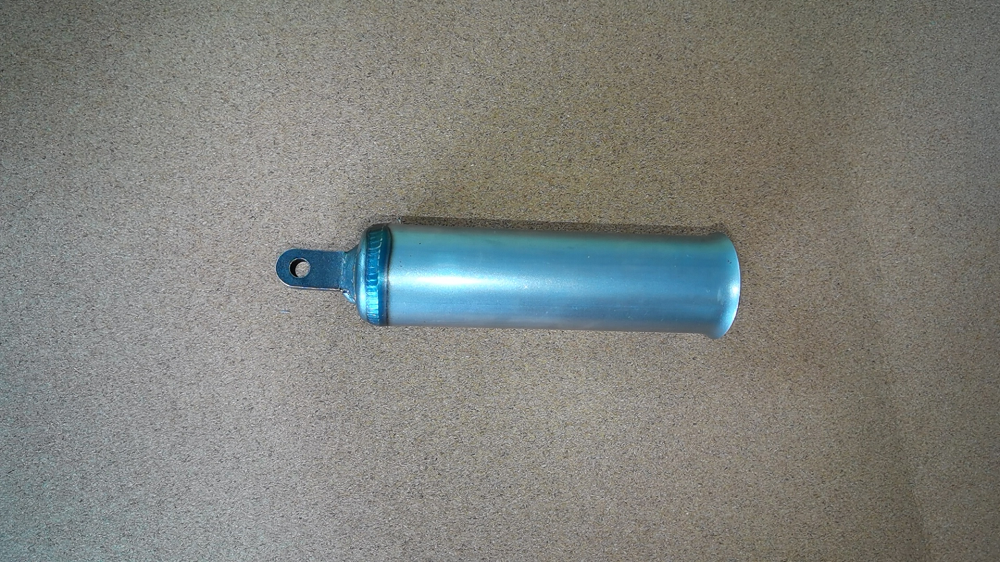

The horizontal automatic seam welding machine is mainly composed of a host frame, pneumatic transmission mechanism, human-computer interaction interface, silver tile conductive components, transplanting mechanism, differential transmission mechanism, secondary circuit, welding transformer, welding controller, water and gas circuit system and other components. Specially designed for welding shock absorbers, shock absorbers, and piston cylinders, and suitable for workpieces of different specifications, with high cost-effectiveness. Automatic feeding and welding to improve production efficiency.

Technical Parameters

Model/Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Main Features

1. Driving method: Horizontal seam welding machines are usually driven by servo motors, which have the characteristics of small torque fluctuations and stable speed. The rotation of the workpiece is driven by the motor to rotate the electrode, which is driven by the frictional force between the electrode and the workpiece. The motion is smooth and the speed is adjustable.

2. Control system: Industrial PLC is used to control the operation of the whole machine. The process can be compiled and set, with a short operating cycle, fast response speed, accuracy, stability, and reliability. Through touch screen for human-machine interaction, it is convenient to set various welding process parameters; Set and modify device parameters and perform various manual and automatic actions; View real-time welding parameters and quantities, which can be uploaded through the MAS system or downloaded from a USB drive.

3. Automation level: The equipment can match different welding fixtures according to the workpiece situation, and can achieve semi-automatic welding mode of manual feeding and automatic welding; It can also be a fully automatic welding method with automatic feeding and welding by the equipment; It can also be connected to the production line to achieve automatic welding on the production line.

General Strctures

Detail Images

Customized Fixtures and Moving Components

Adopting a cyclic transplanting mechanism can achieve fully automatic welding and improve welding efficiency.The device has high compatibility and can weld workpieces of different diameters and lengths.

Cylinder

Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Waterway Components

All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene images

More details, please contact!
