Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts

Product Categories
Chengdu Xinwei Welding Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts

Brand Name : Xingweihan

Place of Origin : Sichuan, China

Certification : CE, RoHS, ISO

MOQ : 1 set

Price : $28,000-30,000 / set

Payment Terms : D/A,L/C,D/P,T/T,Western Union

Supply Ability : 10 sets per month

Delivery Time : 25-45 working days

Product name : Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts

power (kw) : 80-160

Thickness : 2+2MM

voltage : 220 V, 480 V, 380V/50Hz

dimensions : 2400*3000*2600mm(94.49*118.11*102.36in)

warranty : 1 Year

weight (kg) : 2600

Keyword : Seam Welding Machine Manufacturer In China

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

Contact Now

Product Name:Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Product Description

This automatic horizontal continuous roll resistance welder is engineered for high-precision seam welding of cylindrical components such as shock absorber piston tubes. It performs automated loading, detection, and welding in one continuous process, ensuring millimeter-level accuracy and strong, leak-proof seams. Ideal for automotive parts, tanks, and enclosures, the machine adapts to various material and size requirements, delivering consistent quality and reduced cycle times in production.

Technical Parameters
Model/ItemUnitFN-80-HFN-100-HFN-160-HFN-100-EFN-160-E
Rated powerKVA80100160100160
Voltage inputV380380380380380
FrequencyHz5050505050
Max. short circuit currentKA2630403040
Working strokemm100100100100100
Welding efficiencym/min0.7-3.90.7-3.90.7-3.90.7-3.90.7-3.9
Max. forceN60006000780060007800
Max. welding capacitymm1.2+1.21.5+1.52.0+2.01.5+1.52.0+2.0
Motor PowerW550750750750400
Cooling consumptionL/min8810810
WeightKg380510630530700
Main Features
  • Servo-Driven Welding Motion

    Equipped with a servo motor drive system, it provides stable rotation with adjustable speed and minimal torque fluctuation. The electrode rotates via friction against the workpiece, ensuring smooth operation and precise control over the welding process.

  • PLC-Based Control with Touch Interface

    An industrial PLC controls the entire welding cycle, allowing fast response, reliable operation, and easy programming. Through the touchscreen, users can set welding parameters, monitor real-time data, and export production records via USB or MAS system connectivity.

  • Consistent & High-Strength Welds

    Welding parameters are system-controlled to ensure uniform weld appearance, high joint strength, and reliable sealing. The result is repeatable weld quality that meets strict industrial standards.

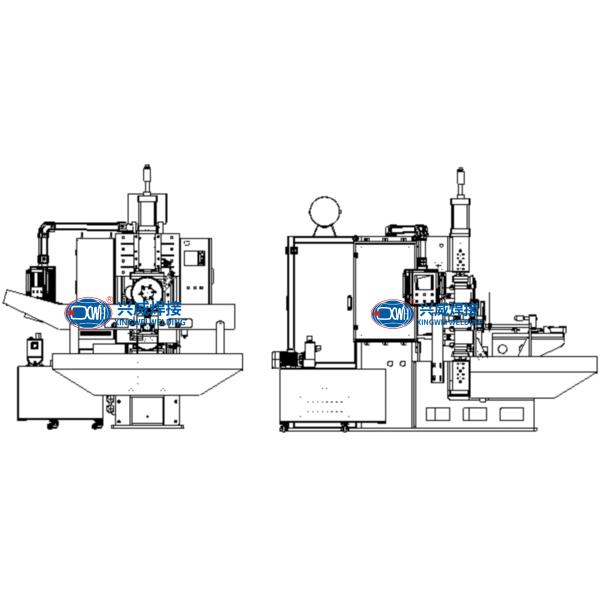

General Structures
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Detail Images
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Customized Fixtures and Moving Components
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Cylinder
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Gas Storage Tanks
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Waterway Components
Scene images
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts
More details, please contact!
